Goal moment card

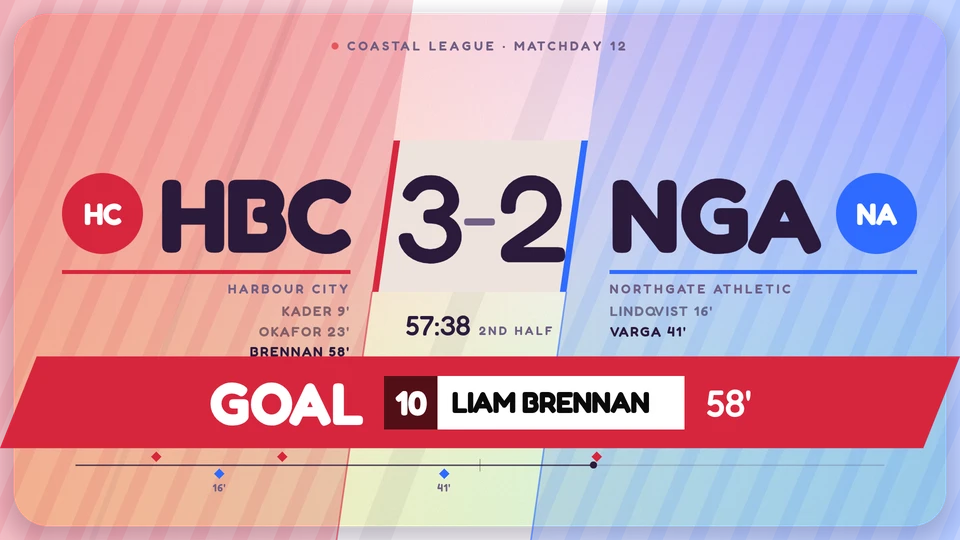

Displays a soccer scoreboard from a supplied screenrig.game.soccer/v1 document or the host feed. Timestamped goal events trigger a synchronized celebration in the animated Primetime theme; the eight calm themes show the score without the takeover. With no match data, replaySeconds enables a repeating demonstration, and 0 disables it. Supports the canvas view.

Category: Sports. Tags: Scoreboards, Team sports, Schools and campuses.

Previews

Views and forms

Views: canvas. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.game.soccer/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`word`	string	`"GOAL"`	maxLength: `8`
`replaySeconds`	number	`12`	minimum: `0`; maximum: `120`	Without match data, a demo goal every this many seconds; 0 turns the demo off.

Dynamic properties

Name	Type	Default	Values and limits	Description
`game`	object, null	`null`		A screenrig.game.soccer/v1 document. A goal event with `at` (ISO instant) plays the moment.

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "goal-moment",
  "primitive": "card",
  "card": "goal-moment",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "example-key"
}

Write live data

The canvas example binds its data field to example-key. That value is a data key: a name this canvas item chooses, not the name of the card. Give each canvas item its own key when items should show different data, or share one key when they should show the same data. Keys are scoped to the project, follow the K/V key grammar, and cannot start with feed:.

Create this document before showing the card, then replace it to update the screen without republishing. Writes to a key that live canvas items bind are checked against each bound card’s dynamic properties. Use the same project as the playlist.

Save the document as card-data.json. The CLI reads the document itself, with no wrapper:

{
  "game": null
}

screenrig card-data put example-key --file card-data.json

Or call the API directly. The API wraps the same document in a document field. An agent token already names its project, so no project header is sent; if you send ScreenRig-Project, it must match the token’s project. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/example-key" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "Content-Type: application/json" \
  --data '{"document":{"game":null}}'
