Exam board card

Category: Schools. Tags: Schools and campuses, Schedules, Wayfinding and directories, Alerts and status.

Previews

Views and forms

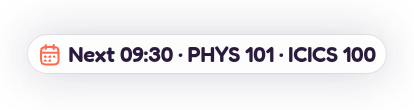

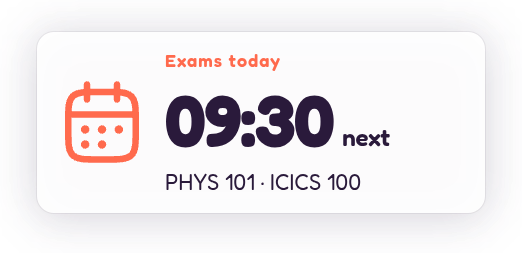

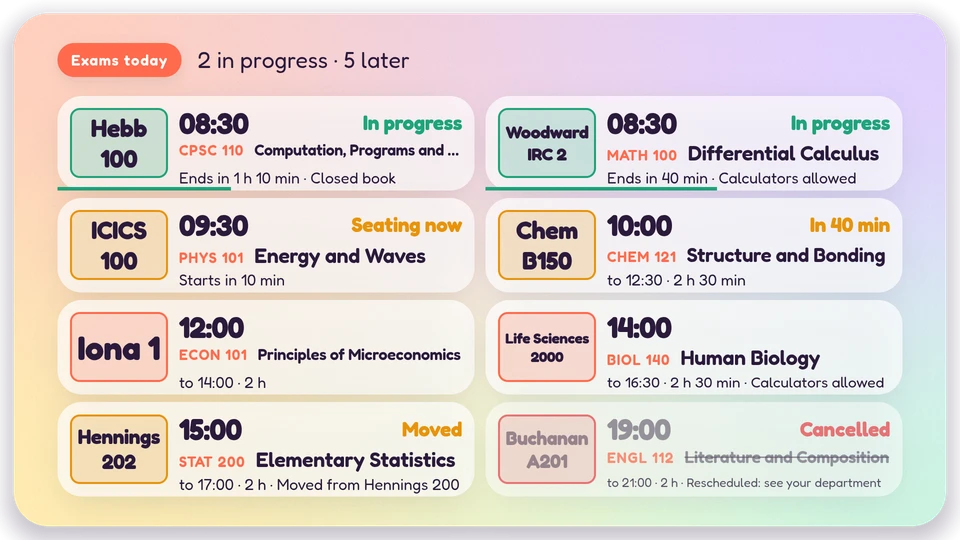

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Courses, rooms and times only; never students or seating lists.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Exams today"`	maxLength: `40`
`seatingMinutes`	integer	`20`	minimum: `0`; maximum: `120`	Seating opens this long before the start; 0 shows no seating.
`defaultMinutes`	integer	`120`	minimum: `15`; maximum: `480`	Length of an exam with no end and no minutes.
`footnote`	string	`""`	maxLength: `120`	One line under the board: Phones off. Bring your student card.
`hour12`	boolean	`false`
`timeZone`	string, null	`null`

Dynamic properties

Name	Type	Default	Values and limits	Description
`exams`	array	`[]`	maxItems: `60`	Today's exams: course, room and times. Never students.
`exams[].course`	string		minLength: `1`; maxLength: `24`; Required	Course code: CPSC 110.
`exams[].title`	string		maxLength: `80`	Introduction to Computer Systems.
`exams[].room`	string		minLength: `1`; maxLength: `28`; Required	Hennings 200.
`exams[].start`	string		maxLength: `30`; Required	HH:MM today, or an ISO 8601 time (an offset, or wall time in the screen's zone).
`exams[].end`	string		maxLength: `30`	HH:MM or ISO 8601; without it the exam lasts minutes.
`exams[].minutes`	integer		minimum: `5`; maximum: `720`	Length of the exam when end is absent.
`exams[].date`	string		maxLength: `10`	YYYY-MM-DD for an HH:MM time; without it, today.
`exams[].note`	string		maxLength: `60`	Calculators allowed. Open book.
`exams[].status`	string	`"scheduled"`	`"scheduled"`, `"moved"`, `"cancelled"`	Moved shows the note (the new room); cancelled strikes the row through.

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "exam-board",
  "primitive": "card",
  "card": "exam-board",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "exam-board-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/exam-board-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"exams":[]}}'
