Election results card

Category: Public information. Tags: Scoreboards, Leaderboards and standings, News and announcements, Events and venues.

Previews

Views and forms

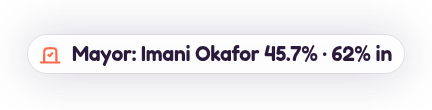

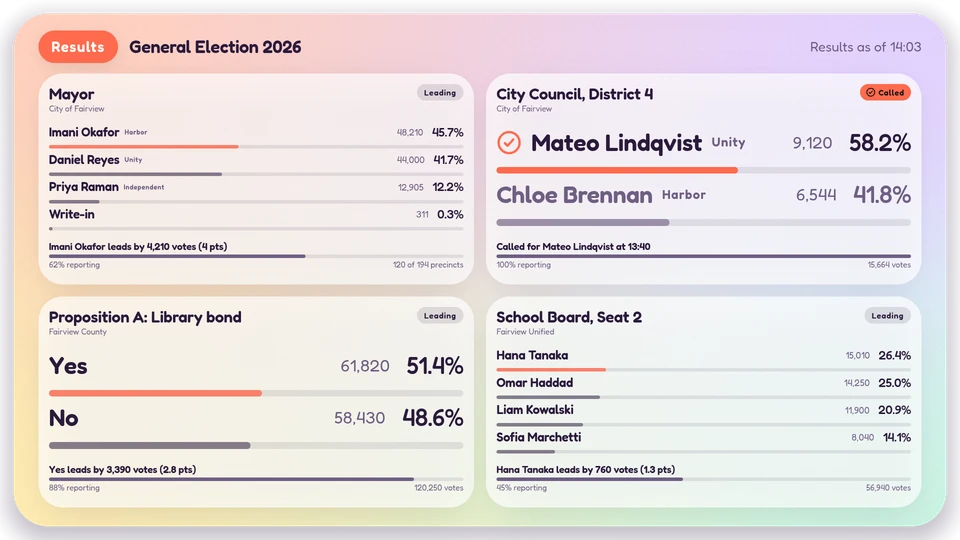

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.election/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Results"`	maxLength: `40`
`layout`	string	`"grid"`	`"grid"`, `"spotlight"`	Several races at once, or one race at a time with every candidate.
`perPage`	integer	`4`	minimum: `1`; maximum: `8`	Races on a page (grid layout); further races take the next page.
`pageSeconds`	integer	`12`	minimum: `5`; maximum: `60`	How long each page, or each race in the spotlight, stays on screen.
`maxCandidates`	integer	`4`	minimum: `2`; maximum: `8`	Candidates listed in a race; the rest share one Others line.
`showVotes`	boolean	`true`		Show vote counts beside the shares.
`showParty`	boolean	`true`		Show each candidate's party as text.
`staleMinutes`	integer	`30`	minimum: `1`; maximum: `1440`
`hour12`	boolean	`false`

Dynamic properties

Name	Type	Default	Values and limits	Description
`electionName`	string	`""`	maxLength: `80`	The election, for example General Election 2026, when the feed carries none.
`races`	array	`[]`	minItems: `0`; maxItems: `40`	The races. A feed (screenrig.election/v1) wins when present; the data store supplies the same rows otherwise.
`races[].id`	string		maxLength: `40`
`races[].title`	string		minLength: `1`; maxLength: `80`; Required	The contest, for example Mayor.
`races[].jurisdiction`	string		maxLength: `60`	Where, for example City of Fairview.
`races[].reportingPct`	number		minimum: `0`; maximum: `100`	Percent of precincts reporting.
`races[].precincts`	object		additionalProperties: `false`
`races[].precincts.reporting`	number		minimum: `0`
`races[].precincts.total`	number		minimum: `0`
`races[].status`	string		`"open"`, `"called"`, `"recount"`, `"runoff"`, `"unopposed"`	Called when the race has been called; a candidate with winner true calls it as well.
`races[].calledAt`	string		maxLength: `32`	When the race was called, ISO 8601.
`races[].featured`	boolean			Lead the corner and chip with this race.
`races[].candidates`	array		minItems: `0`; maxItems: `40`; Required
`races[].candidates[].name`	string		maxLength: `60`; Required
`races[].candidates[].party`	string		maxLength: `24`	Shown as text; no colour comes from it.
`races[].candidates[].votes`	number		minimum: `0`
`races[].candidates[].pct`	number		minimum: `0`; maximum: `100`	Share of the vote; worked out from votes when absent.
`races[].candidates[].winner`	boolean
`races[].candidates[].incumbent`	boolean
`updated`	string	`""`	maxLength: `32`	When the results were last updated, ISO 8601 (data store only; a feed carries fetchedAt).

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "election-results",
  "primitive": "card",
  "card": "election-results",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "election-results-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/election-results-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"electionName":"","races":[],"updated":""}}'
