Weather card

Category: Weather. Tags: Weather and environment, Lobbies and reception, Schools and campuses.

Previews

Views and forms

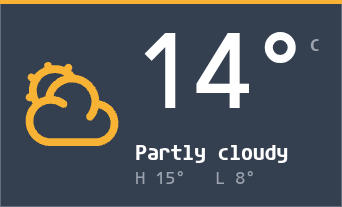

Views: canvas, corner, chip. Canvas forms: landscape, portrait.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.weather/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Weather attribution: Weatherbit, or Data from MET Norway (NLOD 2.0 and CC BY 4.0), as named in the feed document.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits
`location`	object		additionalProperties: `false`; Required
`location.name`	string		maxLength: `40`; Required
`location.latitude`	number		minimum: `-90`; maximum: `90`; Required
`location.longitude`	number		minimum: `-180`; maximum: `180`; Required
`units`	string	`"metric"`	`"metric"`, `"imperial"`
`layout`	string	`"auto"`	`"auto"`, `"current"`, `"forecast"`
`days`	integer	`5`	minimum: `3`; maximum: `7`
`showDetails`	boolean	`true`
`hour12`	boolean	`false`
`timeZone`	string, null	`null`

Dynamic properties

This card has no dynamic properties.

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "weather",
  "primitive": "card",
  "card": "weather",
  "major": 1,
  "params": {
    "theme": "neomustard",
    "location": {
      "name": "Vancouver",
      "latitude": 49.25,
      "longitude": -123.0
    }
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill"
}
