Category: Schools. Tags: Schools and campuses, Schedules.

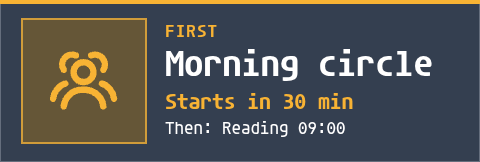

Previews
Views and forms
Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.
Card views, themes and publishing. Browse the gallery.
Data and privacy
This card uses its configured properties and live card data.
Properties
For theme, background, accent and position, see Common properties.
Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.
Static properties
| Name | Type | Default | Values and limits | Description |
|---|---|---|---|---|
showTimes | boolean | true | Show each activity's start time. | |
hour12 | boolean | false | ||
timeZone | string, null | null |
Dynamic properties
| Name | Type | Default | Values and limits | Description |
|---|---|---|---|---|
title | string | "Our day" | maxLength: 40 | The heading. |
items | array | [] | minItems: 0; maxItems: 12 | The day's activities, in order, each a picture and a few words. With a start time an activity is under way from its start to its end (else to the next start); the card follows the clock. Without times, set current. |
items[].label | string | minLength: 1; maxLength: 30; Required | ||
items[].icon | string | "star" | "star", "user-group", "sparkles", "music-note-01", "restaurant-01", "apple", "walking", "volleyball", "basketball-01", "news-01", "lightbulb", "leaf-01", "target-02", "megaphone-01", "bell-ring", "home-01", "bus-01", "drink", "party", "birthday-cake", "message-01", "calendar-03", "clock-01", "favourite", "trophy", "rocket-01", "wrench-01", "camera-01", "sun-03", "moon-02", "droplet", "door-open", "first-aid-kit", "hourglass", "gift" | The picture. |
items[].start | string | maxLength: 5 | HH:MM, 24-hour. Optional. | |
items[].end | string | maxLength: 5 | HH:MM, 24-hour, after the start. Optional: the activity runs until the next one starts. | |
items[].note | string | maxLength: 40 | A short line shown when the activity is under way, for example Bring your coat. | |
current | integer | 0 | minimum: 0; maximum: 99 | 0 follows the clock using the start times. 1 and up marks that activity as now: those before it are done, those after it come next. Past the last one the day is done. |
doneText | string | "All done" | maxLength: 30 | Shown when the last activity is finished. |
Canvas example
Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.
{
"id": "visual-schedule",
"primitive": "card",
"card": "visual-schedule",
"major": 1,
"params": {
"theme": "neomustard"
},
"rect": {
"x": 0,
"y": 0,
"width": 1920,
"height": 1080
},
"layer": 0,
"content_fit": "fill",
"data": "visual-schedule-main"
}Write live data
Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.
curl --request PUT "https://api.screenrig.ai/api/card-data/visual-schedule-main" \
--header "Authorization: Bearer $SCREENRIG_TOKEN" \
--header "ScreenRig-Project: $SCREENRIG_PROJECT" \
--header "Content-Type: application/json" \
--data '{"document":{"title":"Our day","items":[],"current":0,"doneText":"All done"}}'
