Data table card

Category: Operations. Tags: Charts and gauges, Numbers and metrics, Offices and workplaces.

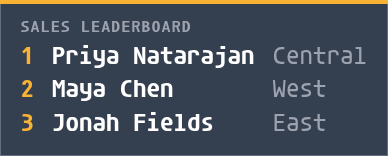

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`""`	maxLength: `60`
`columns`	array		minItems: `1`; maxItems: `8`; Required
`columns[].key`	string		maxLength: `40`; Required
`columns[].label`	string		maxLength: `30`; Required
`columns[].align`	string	`"auto"`	`"auto"`, `"left"`, `"right"`, `"center"`	auto puts numbers right and text left.
`columns[].format`	string	`"text"`	`"text"`, `"number"`, `"percent"`, `"currency"`, `"delta"`	percent shows the number as given with a % sign (12.5 -> 12.5%).
`columns[].decimals`	integer, null	`null`	minimum: `0`; maximum: `4`	null: number 0, percent 1, currency 2, delta 1.
`columns[].width`	number, null	`null`	minimum: `0.2`; maximum: `10`	Relative width; null sizes the column to its content.
`highlight`	integer, string, null	`null`		A row index after sorting (0 is the first), or the first column's value.
`striped`	boolean	`true`
`showRank`	boolean	`false`
`sortBy`	string	`""`	maxLength: `40`
`sortDesc`	boolean	`false`
`maxRows`	integer	`0`	minimum: `0`; maximum: `50`	Rows per page; 0 shows as many as fit. Pages turn on the wall clock.
`pageSeconds`	integer	`10`	minimum: `5`; maximum: `120`
`currency`	string	`"$"`	maxLength: `4`

Dynamic properties

Name	Type	Default	Values and limits	Description
`rows`	array		minItems: `1`; maxItems: `50`; Required

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "table",
  "primitive": "card",
  "card": "table",
  "major": 1,
  "params": {
    "theme": "neomustard",
    "columns": [
      {
        "key": "Example",
        "label": "Example"
      }
    ]
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "table-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/table-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"rows":[{}]}}'
