School lunch card

Category: Food and drink. Tags: Schools and campuses, Restaurants and cafes.

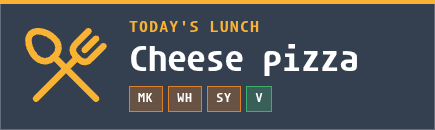

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.lunch/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`""`	maxLength: `40`	Empty reads School lunch (School breakfast, School snack).
`school`	string	`""`	maxLength: `60`	Shown beside the title. A feed's school name fills it when empty.
`meal`	string	`"lunch"`	`"breakfast"`, `"lunch"`, `"snack"`
`count`	integer	`4`	minimum: `1`; maximum: `6`	Days listed after the featured day.
`showAllergens`	boolean	`true`		Allergen and diet marks and their key.
`timeZone`	string, null	`null`

Dynamic properties

Name	Type	Default	Values and limits	Description
`days`	array	`[]`	minItems: `0`; maxItems: `31`	The menu by day. A feed (screenrig.lunch/v1) wins when present; the data store supplies the same rows otherwise.
`days[].date`	string		maxLength: `10`; Required	YYYY-MM-DD in the screen's zone.
`days[].closed`	boolean	`false`		No meal this day (holiday, no school).
`days[].note`	string		maxLength: `80`	Shown on the day: Pizza day, or why there is no school.
`days[].items`	array		maxItems: `12`	The meal in order; the first item is the main dish.
`days[].items[].name`	string		minLength: `1`; maxLength: `60`; Required
`days[].items[].allergens`	array		maxItems: `10`	milk, egg, fish, shellfish, tree nuts, peanuts, wheat, soy, sesame. Each shows as a two-letter mark.
`days[].items[].diet`	string		`"vegetarian"`, `"vegan"`	Shows a V or VG mark.
`days[].meals`	array		maxItems: `4`	A feed's meals for the day; the card's meal picks one. Without meals the day's items are used.
`days[].meals[].kind`	string		`"breakfast"`, `"lunch"`, `"snack"`; Required
`days[].meals[].items`	array		maxItems: `12`; Required
`days[].meals[].items[].name`	string		minLength: `1`; maxLength: `60`; Required
`days[].meals[].items[].allergens`	array		maxItems: `10`	milk, egg, fish, shellfish, tree nuts, peanuts, wheat, soy, sesame. Each shows as a two-letter mark.
`days[].meals[].items[].diet`	string		`"vegetarian"`, `"vegan"`	Shows a V or VG mark.

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "school-lunch",
  "primitive": "card",
  "card": "school-lunch",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "school-lunch-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/school-lunch-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"days":[]}}'
