Practitioners today card

Category: Health. Tags: Healthcare, Schedules, Offices and workplaces.

Previews

Views and forms

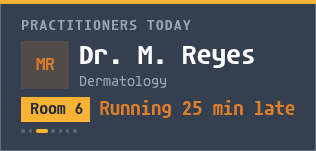

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Practitioners today"`	maxLength: `40`
`hour12`	boolean	`false`
`timeZone`	string, null	`null`		IANA zone; null uses the screen's zone.
`roomLabel`	string	`"Room"`	maxLength: `12`	Put before a short room, so "4" reads "Room 4".

Dynamic properties

Name	Type	Default	Values and limits	Description
`practitioners`	array	`[]`	minItems: `0`; maxItems: `16`	Who is working today.
`practitioners[].name`	string		minLength: `1`; maxLength: `40`; Required
`practitioners[].specialty`	string	`""`	maxLength: `40`
`practitioners[].room`	string	`""`	maxLength: `14`	4, B12 or Gym. One to three letters or digits read after the room label.
`practitioners[].start`	string	`""`	maxLength: `8`	Today's start in the screen's time zone: 08:00 or 8:00 AM. Left out, the practitioner reads as in.
`practitioners[].end`	string	`""`	maxLength: `8`	Today's end.
`practitioners[].lateMinutes`	integer	`0`	minimum: `0`; maximum: `240`	How late the practitioner is running. Until start plus this, the practitioner reads as running late.
`practitioners[].status`	string	`"scheduled"`	`"scheduled"`, `"away"`, `"off"`	scheduled: in and out by the hours. away: out for now (a break, a procedure). off: not working today.
`practitioners[].note`	string	`""`	maxLength: `40`	A line under the status: Back at 2:30 PM.
`footnote`	string	`""`	maxLength: `120`

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "practitioners-today",
  "primitive": "card",
  "card": "practitioners-today",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "practitioners-today-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/practitioners-today-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"practitioners":[],"footnote":""}}'
