Category: Public information. Tags: News and announcements, Lobbies and reception.
Previews
Views and forms

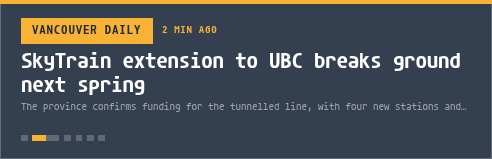

Views: canvas, corner, chip. Canvas forms: landscape, portrait, strip.
Card views, themes and publishing. Browse the gallery.
Data and privacy
Feed: screenrig.headlines/v1.
Feed documents carry source attribution. The Player supplies the feed to the card.
Properties
For theme, background, accent and position, see Common properties.
Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.
Static properties
| Name | Type | Default | Values and limits | Description |
|---|---|---|---|---|
title | string | "" | maxLength: 40 | The masthead; empty uses the feed's source name. |
count | integer | 6 | minimum: 3; maximum: 12 | |
layout | string | "auto" | "auto", "list", "hero", "rotate" | auto: a front page (lead story and the latest beside it); list: equal rows; hero: the lead story alone; rotate: one story at a time. |
intervalSeconds | integer | 8 | minimum: 4; maximum: 120 | |
showSummary | boolean | true | ||
showTime | boolean | true | ||
timeZone | string, null | null | ||
url | string | maxLength: 2048; pattern: "^https?://" | RSS or Atom feed address the headlines come from; you confirm you may show its text. Selects the feed. |
Dynamic properties
This card has no dynamic properties.
Canvas example
Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.
{
"id": "news",
"primitive": "card",
"card": "news",
"major": 1,
"params": {
"theme": "neomustard"
},
"rect": {
"x": 0,
"y": 0,
"width": 1920,
"height": 1080
},
"layer": 0,
"content_fit": "fill"
}
