Moon card

Category: Weather. Tags: Weather and environment, Clocks and calendars.

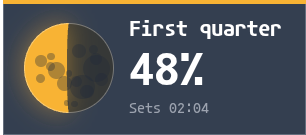

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Moon"`	maxLength: `30`	The header when the location has no name.
`location`	object, null	`null`	additionalProperties: `false`	Where the moon is watched from: rise and set, which way up the moon is lit, and which eclipses are visible. Empty shows the phase alone.
`location.name`	string		maxLength: `40`; Required
`location.latitude`	number		minimum: `-90`; maximum: `90`; Required
`location.longitude`	number		minimum: `-180`; maximum: `180`; Required
`hemisphere`	string	`"north"`	`"north"`, `"south"`	Which way the moon is lit when there is no location.
`hour12`	boolean	`false`
`eclipses`	boolean	`true`		Show the next lunar eclipse the moon is up for.
`timeZone`	string, null	`null`

Dynamic properties

This card has no dynamic properties.

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "moon",
  "primitive": "card",
  "card": "moon",
  "major": 1,
  "params": {
    "theme": "neomustard",
    "location": {
      "name": "Vancouver",
      "latitude": 49.25,
      "longitude": -123.0
    }
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill"
}
