Laundry room card

Category: Schools. Tags: Schools and campuses, Queues and waits.

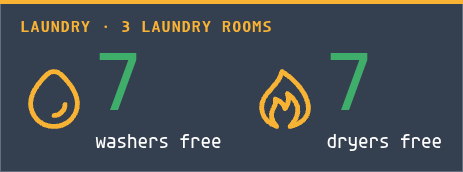

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.laundry/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Laundry"`	maxLength: `40`
`showMinutes`	boolean	`true`		Minutes left inside a running machine when the machine is big enough.
`staleMinutes`	integer	`15`	minimum: `1`; maximum: `1440`
`hour12`	boolean	`false`
`timeZone`	string, null	`null`

Dynamic properties

Name	Type	Default	Values and limits	Description
`rooms`	array	`[]`	minItems: `0`; maxItems: `6`	Laundry rooms with their machines. A feed (screenrig.laundry/v1) wins when present; the data store supplies the same rows otherwise.
`rooms[].name`	string		minLength: `1`; maxLength: `40`; Required
`rooms[].building`	string		maxLength: `40`
`rooms[].machines`	array		maxItems: `60`; Required
`rooms[].machines[].kind`	string		`"washer"`, `"dryer"`; Required
`rooms[].machines[].status`	string		`"free"`, `"running"`, `"done"`, `"out"`, `"offline"`; Required	free: ready to use. running: in a cycle. done: the cycle finished, clothes still inside. out: out of order. offline: no reading.
`rooms[].machines[].minutesLeft`	number		minimum: `0`; maximum: `600`
`updated`	string	`""`	maxLength: `32`	When the readings were taken, ISO 8601 (data store only; a feed carries fetchedAt).

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "laundry-room",
  "primitive": "card",
  "card": "laundry-room",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "laundry-room-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/laundry-room-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"rooms":[],"updated":""}}'
