Category: Public information. Tags: Transit and travel, Schedules.
Previews
Views and forms

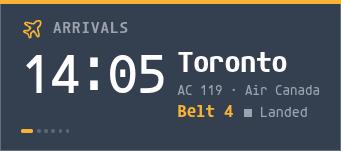

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.
Card views, themes and publishing. Browse the gallery.
Data and privacy
Feed: screenrig.flights/v1.
Feed documents carry source attribution. The Player supplies the feed to the card.
Properties
For theme, background, accent and position, see Common properties.
Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.
Static properties
| Name | Type | Default | Values and limits | Description |
|---|---|---|---|---|
title | string | "" | maxLength: 40 | Empty uses Departures or Arrivals. |
direction | string | "departures" | "departures", "arrivals" | |
count | integer | 8 | minimum: 3; maximum: 14 | Flights per page; more flights take turns every pageSeconds. |
pageSeconds | integer | 12 | minimum: 5; maximum: 60 | |
terminal | string | "" | maxLength: 12 | Only this terminal's flights; empty shows every terminal. |
hour12 | boolean | false | ||
timeZone | string, null | null | IANA zone; null uses the screen's zone (the airport's, normally). |
Dynamic properties
This card has no dynamic properties.
Canvas example
Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.
{
"id": "flights",
"primitive": "card",
"card": "flights",
"major": 1,
"params": {
"theme": "neomustard"
},
"rect": {
"x": 0,
"y": 0,
"width": 1920,
"height": 1080
},
"layer": 0,
"content_fit": "fill"
}
