Category: Sports. Tags: Scoreboards, Leaderboards and standings, Team sports.
Previews
Views and forms

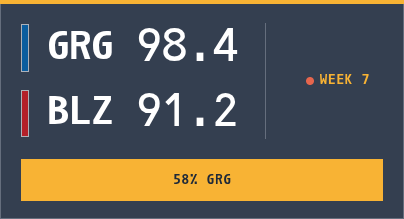

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.
Card views, themes and publishing. Browse the gallery.
Data and privacy
Feed: screenrig.game.fantasy/v1.
Feed documents carry source attribution. The Player supplies the feed to the card.
Properties
For theme, background, accent and position, see Common properties.
Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.
Static properties
| Name | Type | Default | Values and limits | Description |
|---|---|---|---|---|
title | string | "" | maxLength: 40 | Empty uses the competition's name. |
teamColors | boolean | true | Team colours on the marks and bars; off keeps the theme's colours. | |
team | string | "" | maxLength: 60 | The followed team's name, short code or manager: its matchup is the corner's and the chip's, and its standings row is marked. |
decimals | integer | 1 | minimum: 0; maximum: 2 | Decimal places on points. |
closeBy | number | 5 | minimum: 0; maximum: 100 | A live matchup within this many points is called close. |
standings | boolean | true | Show the standings beside the matchups. | |
hour12 | boolean | false | ||
timeZone | string, null | null |
Dynamic properties
| Name | Type | Default | Values and limits | Description |
|---|---|---|---|---|
game | object, null | null | The league's week as a screenrig.game.fantasy/v1 document, for a league's own screen: an agent or a bridge writes it to the data store. Used when no feed is attached. |
Canvas example
Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.
{
"id": "fantasy-board",
"primitive": "card",
"card": "fantasy-board",
"major": 1,
"params": {
"theme": "neomustard"
},
"rect": {
"x": 0,
"y": 0,
"width": 1920,
"height": 1080
},
"layer": 0,
"content_fit": "fill",
"data": "fantasy-board-main"
}Write live data
Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.
curl --request PUT "https://api.screenrig.ai/api/card-data/fantasy-board-main" \
--header "Authorization: Bearer $SCREENRIG_TOKEN" \
--header "ScreenRig-Project: $SCREENRIG_PROJECT" \
--header "Content-Type: application/json" \
--data '{"document":{"game":null}}'
