Dining halls card

Category: Schools. Tags: Schools and campuses, Schedules, Queues and waits.

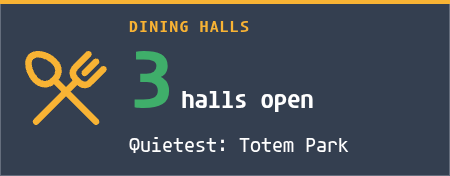

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.dining/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Counts and menus only, never who is eating.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Dining halls"`	maxLength: `40`
`sort`	string	`"status"`	`"status"`, `"feed"`	status lists open halls first, then those opening later, then closed ones; feed keeps the order given.
`busyLow`	integer	`40`	minimum: `1`; maximum: `90`	Under this percent full a hall reads Quiet.
`busyHigh`	integer	`75`	minimum: `10`; maximum: `100`	At or above this percent full a hall reads Busy.
`maxStations`	integer	`4`	minimum: `0`; maximum: `6`
`showStations`	boolean	`true`
`staleMinutes`	integer	`30`	minimum: `1`; maximum: `1440`
`hour12`	boolean	`false`
`timeZone`	string, null	`null`

Dynamic properties

Name	Type	Default	Values and limits	Description
`halls`	array	`[]`	maxItems: `8`	The halls. A feed (screenrig.dining/v1) wins when present; the data store supplies the same rows otherwise.
`halls[].name`	string		minLength: `1`; maxLength: `40`; Required
`halls[].location`	string		maxLength: `40`
`halls[].closed`	boolean	`false`		Closed all day (a break, a holiday); note says why.
`halls[].note`	string		maxLength: `60`
`halls[].meals`	array		maxItems: `8`	Today's serving times.
`halls[].meals[].kind`	string		maxLength: `20`; Required	breakfast, brunch, lunch, dinner, late-night or snack; other text shows as written.
`halls[].meals[].start`	string		maxLength: `32`; Required	ISO 8601; with an offset or wall time in the screen's zone.
`halls[].meals[].end`	string		maxLength: `32`; Required
`halls[].busyPercent`	integer		minimum: `0`; maximum: `100`	How full the hall is now.
`halls[].waitMinutes`	integer		minimum: `0`; maximum: `240`	The line, in minutes.
`halls[].stations`	array		maxItems: `12`
`halls[].stations[].name`	string		maxLength: `30`; Required
`halls[].stations[].meal`	string		maxLength: `20`	Shows only in this meal; empty: every meal.
`halls[].stations[].items`	array		maxItems: `6`
`updated`	string	`""`	maxLength: `32`	When the readings were taken, ISO 8601 (data store only; a feed carries fetchedAt).

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "dining-halls",
  "primitive": "card",
  "card": "dining-halls",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "dining-halls-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/dining-halls-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"halls":[],"updated":""}}'
