Court docket card

Category: Public information. Tags: Schedules, Wayfinding and directories.

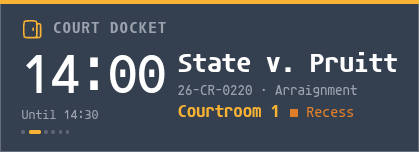

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Court docket"`	maxLength: `40`
`roomLabel`	string	`"Courtroom"`	maxLength: `16`	What a room is called: Courtroom, Department, Hearing room.
`courtroom`	string	`""`	maxLength: `16`	Show only this room (a door sign). Empty shows every room.
`hour12`	boolean	`false`
`showJudge`	boolean	`true`		Show the judge's column on a wide screen.
`hideConcluded`	boolean	`true`		Drop a matter once its status is concluded.
`perPage`	integer	`7`	minimum: `3`; maximum: `14`
`pageSeconds`	integer	`10`	minimum: `4`; maximum: `60`

Dynamic properties

Name	Type	Default	Values and limits	Description
`items`	array	`[]`	minItems: `0`; maxItems: `200`
`items[].start`	string		maxLength: `32`; Required	When the matter is set, ISO 8601. Without an offset it is the screen's local time. Only today's matters show.
`items[].room`	string		minLength: `1`; maxLength: `16`; Required	The courtroom: 3B, 12, Dept 4.
`items[].caption`	string		minLength: `1`; maxLength: `160`; Required	The case name as the court publishes it: State v. Alvarez, In re Estate of Wu.
`items[].caseNo`	string	`""`	maxLength: `24`	The case number.
`items[].matter`	string	`""`	maxLength: `40`	The type of hearing: Sentencing, Motion, Arraignment.
`items[].judge`	string	`""`	maxLength: `40`
`items[].status`	string	`"scheduled"`	`"scheduled"`, `"called"`, `"in-session"`, `"recess"`, `"continued"`, `"cancelled"`, `"concluded"`
`items[].until`	string	`""`	maxLength: `32`	For a recess, when the court resumes, ISO 8601.
`items[].note`	string	`""`	maxLength: `60`	A line under the status: Continued to Nov 3, Moved to Courtroom 5.
`notice`	string	`""`	maxLength: `160`	A notice to everyone in the building, shown in a band under the docket.
`footnote`	string	`""`	maxLength: `160`

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "court-docket",
  "primitive": "card",
  "card": "court-docket",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "court-docket-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/court-docket-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"items":[],"notice":"","footnote":""}}'
