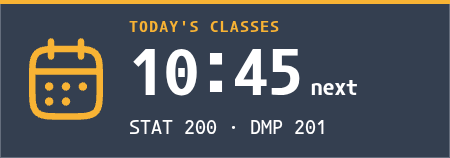

Course timetable card

Category: Schools. Tags: Schools and campuses, Schedules, Wayfinding and directories.

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.timetable/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Only the course, instructor and room the school publishes; never who is enrolled.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Today's classes"`	maxLength: `40`
`soonMinutes`	integer	`15`	minimum: `1`; maximum: `120`	A class starting within this many minutes reads as starting soon.
`showInstructor`	boolean	`true`
`staleMinutes`	integer	`60`	minimum: `1`; maximum: `1440`
`hour12`	boolean	`false`
`timeZone`	string, null	`null`

Dynamic properties

Name	Type	Default	Values and limits	Description
`sessions`	array	`[]`	maxItems: `200`	The building's classes today. A feed (screenrig.timetable/v1) wins when present; the data store supplies the same rows otherwise.
`sessions[].course`	string		minLength: `1`; maxLength: `16`; Required	CPSC 110.
`sessions[].title`	string		maxLength: `60`	Computation, Programs and Programming.
`sessions[].instructor`	string		maxLength: `40`
`sessions[].room`	string		maxLength: `24`
`sessions[].kind`	string		maxLength: `16`	Lecture, lab, tutorial or seminar.
`sessions[].start`	string		maxLength: `32`; Required	ISO 8601; with an offset or wall time in the screen's zone.
`sessions[].end`	string		maxLength: `32`; Required
`sessions[].status`	string	`"scheduled"`	`"scheduled"`, `"moved"`, `"cancelled"`
`sessions[].note`	string		maxLength: `50`	Room changed from 101.
`updated`	string	`""`	maxLength: `32`	When the timetable was read, ISO 8601 (data store only; a feed carries fetchedAt).

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "course-timetable",
  "primitive": "card",
  "card": "course-timetable",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "course-timetable-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/course-timetable-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"sessions":[],"updated":""}}'
