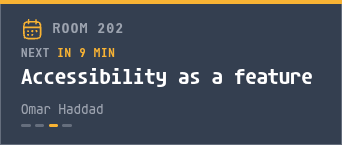

Conference schedule card

Category: Events. Tags: Events and venues, Schedules, Wayfinding and directories.

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Schedule"`	maxLength: `40`
`hour12`	boolean	`false`

Dynamic properties

Name	Type	Default	Values and limits	Description
`sessions`	array	`[]`	minItems: `0`; maxItems: `120`	Every session of the programme. The card shows the screen's current day, or the next day with sessions, or the last.
`sessions[].title`	string		minLength: `1`; maxLength: `80`; Required
`sessions[].start`	string		maxLength: `32`; Required	ISO 8601. Without an offset it is a wall time in the screen's zone: 2026-10-14T09:30.
`sessions[].end`	string	`""`	maxLength: `32`	ISO 8601 as for start. Left out, the session lasts an hour.
`sessions[].room`	string	`""`	maxLength: `30`	Where it runs. Left out, the session is in Main room.
`sessions[].track`	string	`""`	maxLength: `30`	The stream it belongs to, drawn in its own colour.
`sessions[].speakers`	array	`[]`	minItems: `0`; maxItems: `4`
`rooms`	array	`[]`	minItems: `0`; maxItems: `6`	The order of the rooms, and rooms that have no session today. Rooms the sessions name but this leaves out follow in the order they first appear; six rooms at most.
`tracks`	array	`[]`	minItems: `0`; maxItems: `6`	The order of the tracks, which sets their colours (four colours, then they repeat).
`footnote`	string	`""`	maxLength: `120`

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "conference",
  "primitive": "card",
  "card": "conference",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "conference-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/conference-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"sessions":[],"rooms":[],"tracks":[],"footnote":""}}'
