Combo meals card

Category: Food and drink. Tags: Restaurants and cafes, Stores, Prices and rates.

Previews

Views and forms

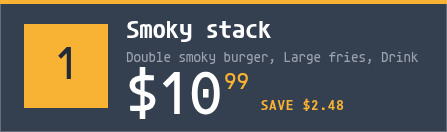

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

This card uses its configured properties and live card data.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Combo meals"`	maxLength: `40`
`currency`	string	`"$"`	maxLength: `3`
`decimals`	number, string	`"auto"`	`"auto"`, `0`, `1`, `2`	auto uses whole numbers when every price is whole.
`perPage`	integer	`0`	minimum: `0`; maximum: `8`	Combos on a page. 0 sets itself: four across in landscape, a column in portrait.
`pageSeconds`	number	`10`	minimum: `5`; maximum: `120`	How long a page stays when the combos do not fit one page.
`footnote`	string	`""`	maxLength: `120`	A line along the foot, for example Prices include tax.

Dynamic properties

Name	Type	Default	Values and limits	Description
`combos`	array	[{"name":"Smoky stack","items":["Double smoky burger","Large fries","Drink"],"price":10.99,"was":13.47,"upsize":{"label":"Large","add":1.2},"kcal":1240,"badge":"Popular"},{"name":"Crispy chicken","items":["Crispy chicken sandwich","Fries","Drink"],"price":9.49,"was":11.97,"upsize":{"label":"Large","add":1.2},"kcal":1080},{"name":"Garden bowl","items":["Grain bowl","Fruit cup","Drink"],"price":11.25,"was":13.5,"upsize":{"label":"Large","add":1.5},"kcal":760},{"name":"Little one","items":["Mini burger","Apple slices","Juice box"],"price":6.25,"was":7.75,"kcal":520}]	maxItems: `24`	The combos, in board order.
`combos[].number`	string		maxLength: `4`	The number on the board. Empty counts 1, 2, 3.
`combos[].name`	string		minLength: `1`; maxLength: `120`; Required
`combos[].items`	array		maxItems: `6`	What is in the combo, one line each.
`combos[].price`	number, null		minimum: `0`	The combo price.
`combos[].was`	number, null		minimum: `0`	The same items bought one by one; the saving is worked out.
`combos[].upsize`	object, null		additionalProperties: `false`	The upsize step, for example Large +1.20.
`combos[].upsize.label`	string		maxLength: `24`
`combos[].upsize.add`	number, null		minimum: `0`
`combos[].kcal`	number, null		minimum: `0`
`combos[].image`	string		maxLength: `200`	A project media reference (media:<id>). Empty shows the theme's tile with a food icon.
`combos[].badge`	string		maxLength: `16`	A short mark on the photo, for example Popular.
`combos[].soldOut`	boolean	`false`

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "combo-meals",
  "primitive": "card",
  "card": "combo-meals",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "combo-meals-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/combo-meals-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"combos":[{"name":"Smoky stack","items":["Double smoky burger","Large fries","Drink"],"price":10.99,"was":13.47,"upsize":{"label":"Large","add":1.2},"kcal":1240,"badge":"Popular"},{"name":"Crispy chicken","items":["Crispy chicken sandwich","Fries","Drink"],"price":9.49,"was":11.97,"upsize":{"label":"Large","add":1.2},"kcal":1080},{"name":"Garden bowl","items":["Grain bowl","Fruit cup","Drink"],"price":11.25,"was":13.5,"upsize":{"label":"Large","add":1.5},"kcal":760},{"name":"Little one","items":["Mini burger","Apple slices","Juice box"],"price":6.25,"was":7.75,"kcal":520}]}}'
