Build board card

Category: Operations. Tags: Alerts and status, Numbers and metrics, Offices and workplaces.

Previews

Views and forms

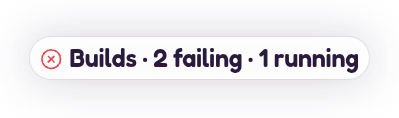

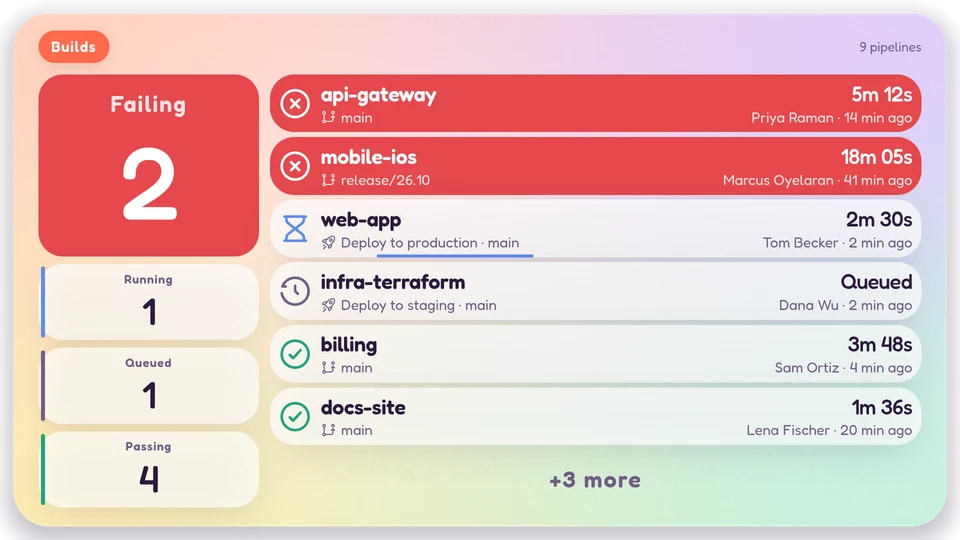

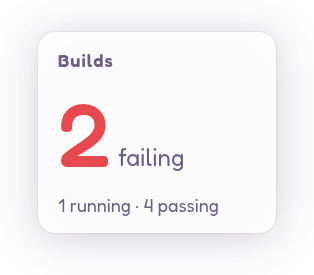

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.builds/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Builds"`	maxLength: `40`
`branch`	string	`""`	maxLength: `60`	Shows only runs on this branch; empty shows every branch.
`show`	string	`"all"`	`"all"`, `"builds"`, `"deploys"`
`staleMinutes`	integer	`10`	minimum: `1`; maximum: `1440`	Data older than this shows Updated N min ago.

Dynamic properties

Name	Type	Default	Values and limits	Description
`updatedAt`	string	`""`	maxLength: `40`	ISO 8601 instant the pipelines were taken (data store only; a feed carries fetchedAt).
`pipelines`	array	`[]`	maxItems: `60`
`pipelines[].id`	string	`""`	maxLength: `60`
`pipelines[].name`	string		minLength: `1`; maxLength: `60`; Required	The repository or pipeline.
`pipelines[].branch`	string	`""`	maxLength: `60`
`pipelines[].kind`	string	`"build"`	`"build"`, `"deploy"`
`pipelines[].environment`	string	`""`	maxLength: `30`	Where a deploy goes, for example production.
`pipelines[].status`	string	`""`	maxLength: `24`	passed, failed, running, queued or cancelled. Also read: success, succeeded, ok, green, deployed; failure, error, broken, red, timed-out; in-progress, building, deploying, started; pending, waiting, scheduled; canceled, skipped, aborted. Any other word shows grey as given.
`pipelines[].startedAt`	string	`""`	maxLength: `40`	ISO 8601 instant the run started (queued runs: when they were queued). A running pipeline's duration counts from it.
`pipelines[].finishedAt`	string	`""`	maxLength: `40`	ISO 8601 instant the run finished.
`pipelines[].durationSeconds`	integer	`0`	minimum: `0`; maximum: `8640000`	The run's length. Left out, it is finishedAt minus startedAt.
`pipelines[].actor`	string	`""`	maxLength: `60`	Who started or triggered it.

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "build-board",
  "primitive": "card",
  "card": "build-board",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "build-board-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/build-board-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"updatedAt":"","pipelines":[]}}'
