Bike share card

Category: Public information. Tags: Transit and travel, Wayfinding and directories.

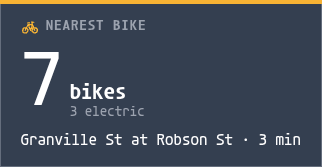

Previews

Views and forms

Views: canvas, corner, chip. Canvas forms: landscape, portrait, square, strip.

Card views, themes and publishing. Browse the gallery.

Data and privacy

Feed: screenrig.bikeshare/v1.

Feed documents carry source attribution. The Player supplies the feed to the card.

Properties

For theme, background, accent and position, see Common properties.

Set static properties in params. Bind data to a project card data key for live values; that document holds only dynamic properties. Without a data key, put the complete configuration in params. Nested rows describe the contents of their parent property.

Static properties

Name	Type	Default	Values and limits	Description
`title`	string	`"Bike share"`	maxLength: `40`
`mode`	string	`"rent"`	`"rent"`, `"return"`	rent features the nearest station with a bike; return the nearest with a free dock.
`count`	integer	`6`	minimum: `3`; maximum: `12`	Most stations in the list beside the nearest.
`maxDistanceM`	integer	`1500`	minimum: `100`; maximum: `20000`
`units`	string	`"metric"`	`"metric"`, `"imperial"`
`walkMetersPerMin`	integer	`80`	minimum: `30`; maximum: `150`
`staleMinutes`	integer	`15`	minimum: `2`; maximum: `1440`
`hour12`	boolean	`false`

Dynamic properties

Name	Type	Default	Values and limits	Description
`stations`	array	`[]`	minItems: `0`; maxItems: `100`	Nearby stations. A feed (screenrig.bikeshare/v1) wins when present; the data store supplies the same rows otherwise.
`stations[].id`	string		maxLength: `40`
`stations[].name`	string		minLength: `1`; maxLength: `80`; Required
`stations[].bikes`	integer		minimum: `0`; maximum: `999`; Required	Bikes available, e-bikes included.
`stations[].ebikes`	integer	`0`	minimum: `0`; maximum: `999`	Of those, the electric ones.
`stations[].docks`	integer		minimum: `0`; maximum: `999`; Required	Free docks.
`stations[].distanceM`	number		minimum: `0`; maximum: `100000`	Metres from the screen.
`stations[].walkMin`	number		minimum: `0`; maximum: `600`	Minutes on foot. Empty works it out from the distance.
`stations[].status`	string		maxLength: `20`	active (default), closed, offline or out-of-service.
`updated`	string	`""`	maxLength: `32`	When the counts were fetched, ISO 8601 (data store only; a feed carries fetchedAt).

Canvas example

Add this item to a playlist page’s primitives. Publish the playlist and assign a screen.

{
  "id": "bike-share",
  "primitive": "card",
  "card": "bike-share",
  "major": 1,
  "params": {
    "theme": "neomustard"
  },
  "rect": {
    "x": 0,
    "y": 0,
    "width": 1920,
    "height": 1080
  },
  "layer": 0,
  "content_fit": "fill",
  "data": "bike-share-main"
}

Write live data

Create this document before showing the card, then replace it to update the screen without republishing. Use the same project as the playlist. Supply your API authorization through the environment; see API authentication.

curl --request PUT "https://api.screenrig.ai/api/card-data/bike-share-main" \
  --header "Authorization: Bearer $SCREENRIG_TOKEN" \
  --header "ScreenRig-Project: $SCREENRIG_PROJECT" \
  --header "Content-Type: application/json" \
  --data '{"document":{"stations":[],"updated":""}}'
